Forged Rail Clip for 22 lb rail
Description

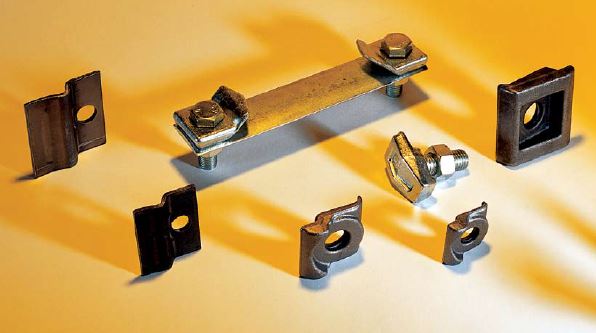

Forged Rail Clip for 22 lb rail. Hot forged rigid guide rail clamping system. Recommended for applications where rail stack movement is not expected.

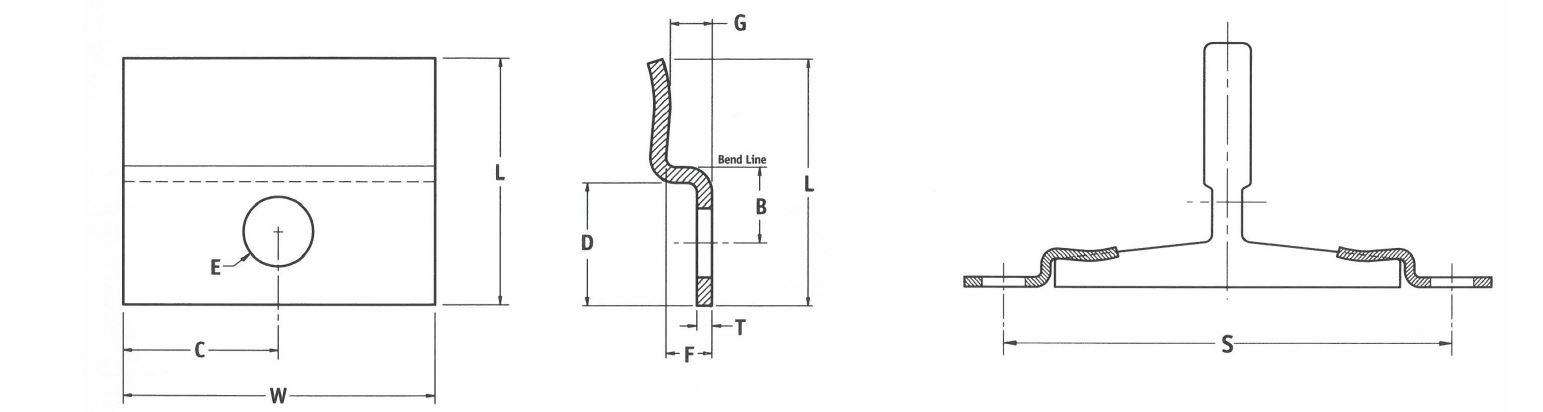

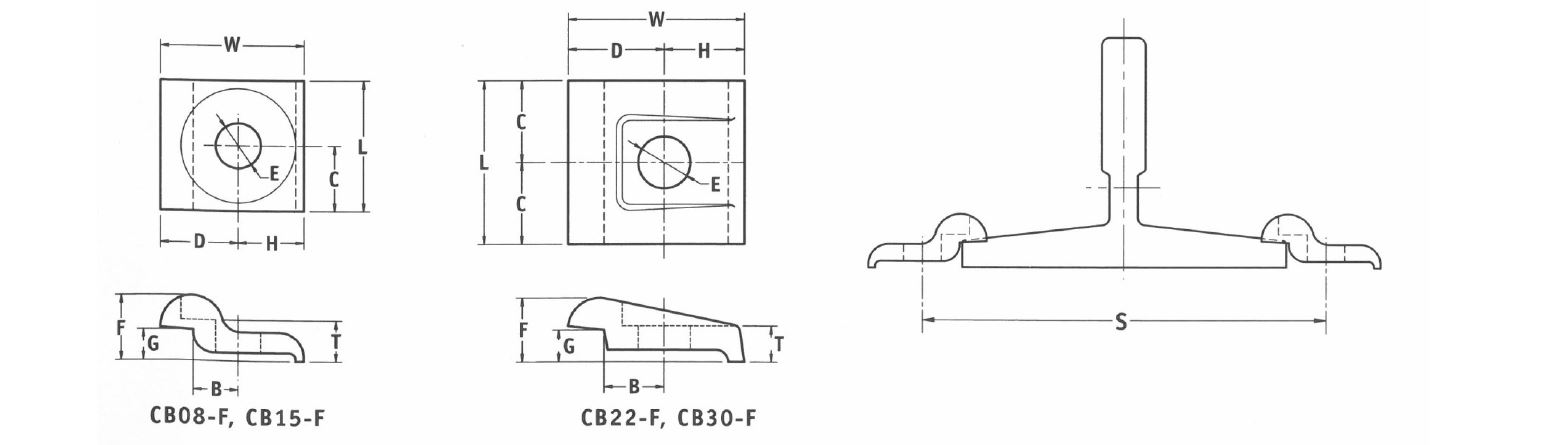

| HCI # | Part # | Rail Size | wt/pc(lbs) | L | W | B | C | D | E | F | G | H | T | S |
| 17010 | CB08-F | T89 (8 lb) | 0.18 | 1.625 | 1.625 | 0.5 | 0.813 | 0.875 | 0.563 | 0.719 | 0.313 | 0.75 | 0.389 | 4.5 |
| 17011 | CB15-F | T114 (11 lb) | 0.42 | 2 | 2.188 | 0.688 | 1 | 1.188 | 0.688 | 1 | 0.5 | 1 | 0.625 | 5.88 |
| 17011 | CB15-F | T127-1 (12 lb) | 0.42 | 2 | 2.188 | 0.688 | 1 | 1.188 | 0.688 | 1 | 0.5 | 1 | 0.625 | 6.38 |
| 17011 | CB15-F | T127-2 (15 lb) | 0.42 | 2 | 2.188 | 0.688 | 1 | 1.188 | 0.688 | 1 | 0.5 | 1 | 0.625 | 6.38 |
| 17011 | CB15-F | T140-1 (18.5 lb) | 0.42 | 2 | 2.188 | 0.688 | 1 | 1.188 | 0.688 | 1 | 0.5 | 1 | 0.625 | 6.88 |
| 17012 | CB22-F | T140-2 (22 lb) | 0.92 | 2.563 | 2.75 | 0.938 | 1.281 | 1.5 | 0.813 | 1 | 0.5 | 1.25 | 0.625 | 7.39 |
| 17013 | CB30-F | T140-3 (30 lb) | 1.15 | 3 | 2.75 | 0.938 | 1.5 | 1.5 | 0.813 | 1.125 | 0.75 | 1.25 | 0.75 | 7.39 |
